Drum Heating Oven
The drum heating oven brings the raw material in drums and IBC tanks to the right viscosity before manufacture by heating it at a controlled temperature.
Indicative price · from
€8 335 / $9 625
Indicative ex-works İstanbul price, excluding VAT, freight and duties. Converted from the TRY list price at the rate shown; confirmed on the quotation.
rate as of: 2026-09-15
Available sizes
- Electric
- Steam / Thermal oil
Available sizes
- 1 drum
- 2 drums
- 4 drums (1 IBC tank)
- 8 drums (2 IBC tanks)
- 8 drums on two levels (2 IBC tanks)
- 12 drums (3 IBC tanks)
- 16 drums (4 IBC tanks)
- 24 drums (6 IBC tanks)
Overview

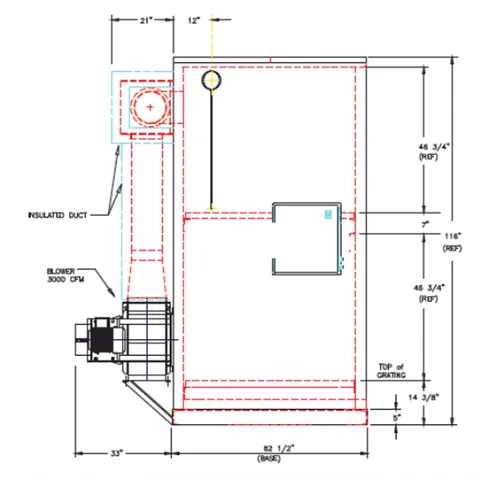

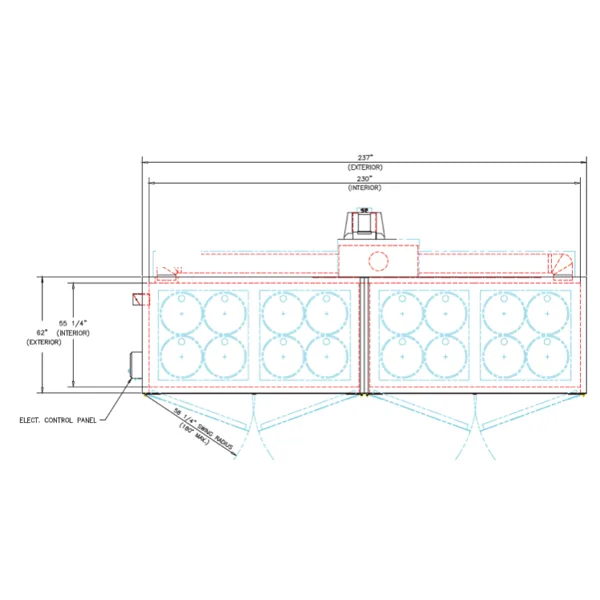

The drum heating oven brings the raw material in drums and IBC tanks to the right viscosity before manufacture by heating it at a controlled temperature. The whole item of equipment is taken inside the oven: the heat is spread evenly over every surface by fan-assisted circulation, the temperature is held steady digitally, and the result repeats on every cycle.
The price does not rise in direct proportion to capacity — the body, the control system and the fan group are supplied once in every model.
At a glance
CE certifiedOur own manufacture since 1995
2-year warrantyElectrical and mechanical components included
Delivered assembledPut it in place, connect it, run it
Delivery throughout TürkiyeMaintenance and spare parts support
Where it is used
Electric
Heats with its own element
It requires only electricity from the plant. The right choice for businesses with no steam boiler or thermal oil line, and for ovens to be sited away from the line. It is the simplest solution to install.
Steam / Thermal oil
Fed from your existing line
It takes heat from the steam boiler or thermal oil line already running in your plant. It adds no extra electrical load and lowers the operating cost markedly. If you have the line, it is more economical.
| Industry | Typical application |
|---|---|
| Chemicals | Heating resin, polymer, adhesive and solvent |
| Paint and coatings | Viscosity adjustment in varnish and paint |
| Petrochemicals | Heating bitumen, paraffin wax and mineral oil |
| Food | Melting honey, sugar syrup, oils and fats, and chocolate |
| Pharmaceuticals and cosmetics | Raw material preparation, cream and lotion production |
| Plastics and polymers | Melting raw material and preparation before dosing |
| Laboratory and R&D | Sample preparation and pilot production cycles |
Technical specifications
| Property | Standard | Optional |
|---|---|---|
| Temperature range | Electric: ambient temperature – 150 °CSteam / thermal oil: ambient temperature – 180 °C | Range specific to the project |
| Temperature control | Digital proportional controller | PLC + HMI touch screen |
| Heat distribution | Fan-assisted circulation | High-capacity fan |
| Electrical connection | 240 V or 380 V, 3-phaseOn the steam version, only for the fan and controls | — |
| Construction | 1.2 mm inner · 1.4 mm outer wall, steel frame | 304 stainless steel |
| Insulation | 76 mm mineral wool, 6# density | 100 mm high efficiency |
| Surface | Stove-enamelled inner and outer surfaces | Stainless steel lining |
| Handling | Body that can be moved by forklift | On castors · flush with the floor |
| Spill containment tray | Integrated into the body, 53 – 625 L (according to capacity) | — |
| Safety | Overheat cut-out, door sensor, emergency stop, residual current protection, temperature alarm | Gas detector · fire suppression |
| Food compliance | — | FDA / EC 1935/2004 inner surface |
| Data logging | — | USB / Ethernet logger · SCADA |
| Conformity | CE | — |
Selection guide
Jacket, cabinet or oven?
| Solution | When it is right | Its limit |
|---|---|---|
| Heating jacket | One or two drums, the 60–70 °C band, an economical solution | A separate jacket and separate labour are needed for each drum |
| Base heating unit | If drums are changed frequently by forklift and maintaining fluidity is enough | It heats only from the base; not enough for complete melting |
| Drum heating cabinet | If you need a single drum but with full control and high temperature | Single-drum capacity |
| Drum heating oven | Four drums or more at a time, a repeatable cycle, above 70 °C | It requires a fixed installation and a supply line |
Is this the right product?
A good fit when
- If you are melting raw material in 4 drums or more at a time
- If you need to take the raw material above 70 °C
- If you want a repeatable result on every cycle
Not the right choice when
- If you work with one or two drums — a heating jacket is more economical
- If you only need to prevent freezing — a base heater is enough
- It is not used for heating flammable substances directly
Installation
The drum heating oven is assembled and tested at our factory before dispatch. The work to be done on site is putting the body in position and making the supply connection.
Ordering and delivery
- 1–2 daysQuotation and needs analysis
- 1 dayOrder confirmation and production planning
- 20–30 daysProduction
- 2 daysTesting and quality control
- 2–5 daysDispatch — throughout Türkiye, fully assembled
- 1 dayInstallation, commissioning, training
Frequently asked questions
Why should I buy an oven rather than a jacket?
A jacket is right for businesses working with one or two items of equipment and melting in the 60–70 °C band. In a plant processing five, ten or twenty drums at a time, working with jackets costs labour and time. Where the temperature has to go above 70 °C, a jacket cannot be used.
Which is more economical, steam or electric?
If there is a steam boiler or thermal oil line running in the plant, the steam model lowers the operating cost markedly. If there is no such line, installing a boiler for this oven alone makes no sense; the electric model is the better choice.
Can I heat IBC tanks as well?
Yes. The models for 4 drums and above take the same volume in IBC tanks: 4 drums 1 IBC, 8 drums 2 IBC, 12 drums 3 IBC, 16 drums 4 IBC, 24 drums 6 IBC.
Is a capacity larger than 24 drums possible?
Our standard production goes up to 24 drums. Larger capacities — 32, 64 drums and above — are designed and built as hotboxes, in the form of a controlled climate room that a forklift can drive into. They are priced after a survey.
How long does the oven take to heat up?
The time varies with the type of raw material, the starting and target temperatures and the number of full drums. A typical melting cycle is a few hours. If you tell us your raw material and target temperature, we will calculate an estimated cycle time and send it with the quotation.
