Pipe & Tank Heat Tracing
HMax Series Self-Regulating Heat Trace Cable
HMax is a self-regulating heating cable made to prevent pipelines freezing.
Indicative price · from
€45 / $50
Indicative ex-works İstanbul price, excluding VAT, freight and duties. Converted from the TRY list price at the rate shown; confirmed on the quotation.
rate as of: 2026-09-15
Available sizes
- 5m
- 6m
- 7m
- 8m
- 9m
- 10m
- 15m
- 20m
- 25m
- 30m
- 40m
- 50m
Overview
HMax is a self-regulating heating cable made to prevent pipelines freezing. Thanks to the carbon matrix inside it, every centimetre of the cable responds independently to the ambient temperature: where it cools, resistance falls and power output rises; where it warms, resistance rises and output falls. As a result the cable reduces its own output wherever it overlaps itself, and every point works to its own requirement even when the temperature varies along the run. It is made in 10, 20 and 30 W/m ratings, and all three cost the same.

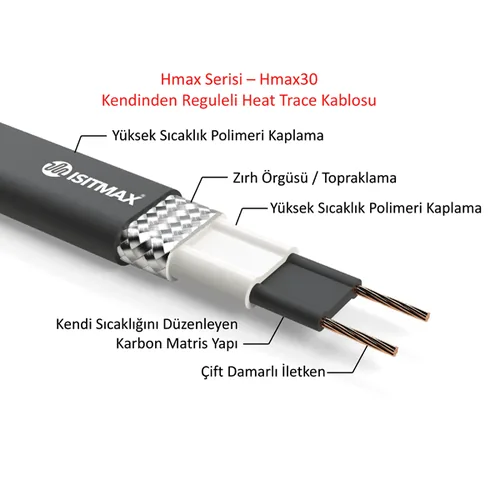

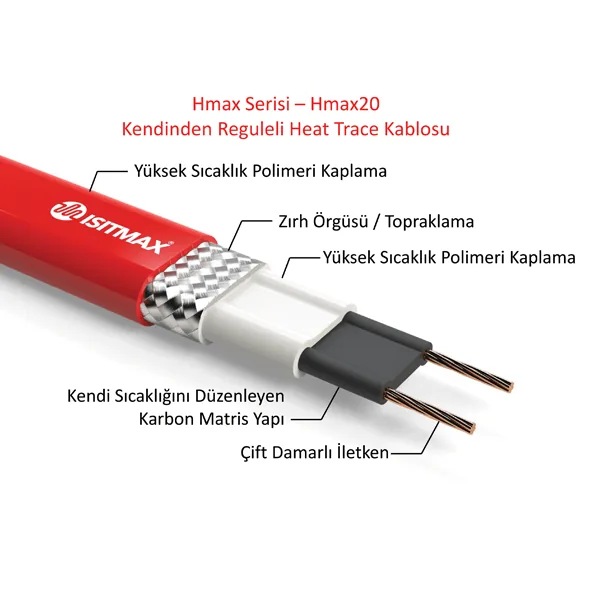

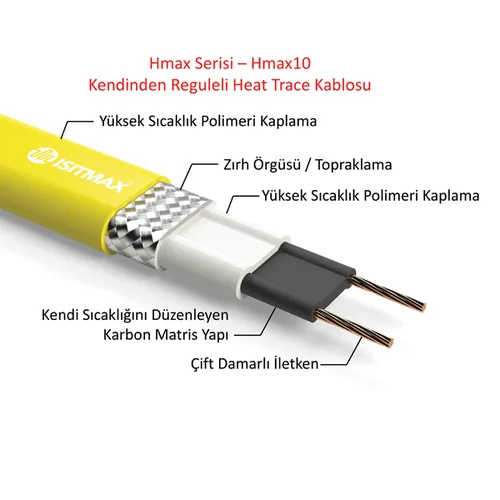

The carbon matrix between the two conductors is the heating element of the cable. This matrix expands and contracts with temperature; as it expands the carbon particles move apart, electrical resistance rises and the current passing at that point falls. When it cools, the opposite happens. A self-regulating heating cable therefore behaves not like one thermostat but like thousands of independent miniature thermostats — every centimetre responds to the temperature at its own location.
At a glance
Self-regulatingEvery point sets its own output according to the ambient temperature.
10 / 20 / 30 W/mAll three ratings cost the same; the pipe decides the choice.
Cut on siteCut to any length required, supplied with an integrated cold lead.
2-year warrantyISITMAX manufacture, certified to CE · GOST · EAC.
Where it is used
Buildings and plumbing
Frost protection
Water pipes on external facades and in roof spaces · garden and terrace pipework · water meters and meter boxes · fire sprinkler lines · sewer and waste pipes · pipework in unheated basements and stores.
Industry
Process and equipment protection
Suction and discharge lines · frost protection of tank, pump and valve bodies · pipework in refrigeration plants · cold store pipework · lines carrying liquids whose viscosity suffers at low temperatures.
Self-regulating heating cable is used on any line where the liquid inside freezing or cooling is a problem. There are two basic purposes: frost protection — holding the liquid above freezing point; and temperature maintenance — holding the liquid at a particular working temperature. Both are done with the same cable; what changes is the rating and the running time.
Technical specifications
| Property | Value |
|---|---|
| Type | Self-regulating, carbon matrix |
| Output — at 10 °C | 10 W/m · 20 W/m · 30 W/mall three cost the same |
| Conductor cross-section | 2×0,75 mm² · 2×1,5 mm² · 2×2,5 mm² |
| Supply voltage | 230 V standard24 V, 115 V and 400 V optional |
| Insulation | Silicone insulated, twin conductor |
| Maximum energised temperature | 65 °C |
| Maximum withstand de-energised | 85 °C |
| Flexibility | Stays flexible even at −70 °C |
| Cutting on site | Yes — cut to any length required |
| Fastening | Integrated cold lead |
| Maximum run per circuit | 50–60 mabove this, the circuit is split into several runs |
| Explosion protection | None |
| Certificates | CE · GOST · EAC |
| Warranty | 2-year manufacturer warranty |
Selection guide
Which power rating should I choose?
| Pipe | Diameter | Recommended output |
|---|---|---|
| Plastic (PVC, PPRC, PE) | Up to Ø50 mm | 10–20 W/mdo not exceed the 20 W/m limit |
| Metal | Up to Ø50 mm | 10–20 W/m |
| Metal | Ø50–100 mm | 20–30 W/m |
| Metal | Ø100 mm and above | 30 W/m or two runs |
Is this the right product?
A good fit when
- Your line has a high density of irregular surfaces such as valves, flanges, pumps and elbows, and you want the cable to reduce its own output where it overlaps itself.
- Temperature varies along the run — part of it is in the sun, part in shade or exposed outdoors.
- You want to measure and cut on site; self-regulating heating cable is cut on site and comes with an integrated cold lead.
- A power band suited to your pipe diameter is sufficient: 10–20 W/m up to Ø50 mm, 20–30 W/m for Ø50–100 mm.
- You can cover the cable with pipe insulation — heat tracing is always laid beneath the insulation.
Not the right choice when
- The specification calls for a fixed W/m figure, or a long straight run needs equal output at every metre — the SMax constant-wattage pipe heating cable is made for that.
- The surface to be heated is not a pipe but a tank or silo body — industrial tank heat tracing is sized by surface area.
- You want to heat a valve or a short pipe section with a removable solution — heated flange and valve jackets and heated pipe jackets are the alternative to cable.
- A hazardous area (Ex) classification is required — this cable is not explosion protected.
Installation
- lengthCut the cable to the calculated length; do not forget the allowances for valves, pumps and elbows
- layingLay it as a straight run along the pipe; use the allowance around valves and flanges
- fixingFix it in place — aluminium tape on plastic pipe, glass fibre tape on metal pipe
- testingMeasure and record the insulation resistance
- insulationCover the pipe and cable with rock wool or glass wool and wrap foil over it
- commissioningConnect the cold lead to the junction box, bring in the residual current protection and test
A system without insulation does not work efficiently. Insulation keeps the heat produced in the pipe; on an uninsulated run the cable works continuously, consumption rises and the risk of freezing is still not fully removed. Heat tracing and insulation are not separate products but two parts of one solution. The cable goes beneath the insulation — placed over it, most of the heat it produces is lost to the air.
Ordering and delivery
- same dayLength and rating confirmed, order placed
- 1 working dayCutting, testing and packing
- 1 working dayHandover to the carrier and tracking number
- 1–3 working daysDelivery throughout Türkiye
Warranty and support
ISITMAX has manufactured electric heating products in its own facility since 1995; manufacturing is CE certified. PTC thermistor behaviour is a good starting point for a general description of self-regulating heating cable technology — the carbon matrix in HMax works on the same principle, raising its resistance as the temperature rises.
Frequently asked questions
What does self-regulating heating cable mean?
It means the cable sets its own power output according to the ambient temperature. As the carbon matrix inside warms, its resistance rises and the output at that point falls; as it cools, the opposite happens. Because every centimetre of the cable behaves independently, each point works to its own requirement even when temperatures vary along the run.
Is a thermostat needed?
Not mandatory — a self-regulating heating cable reduces its own output as the temperature rises. However, residual current protection and correct earthing are mandatory. If you want energy savings and automatic switching, a heating control panel is added; the Ekoline series is sufficient for a single circuit, while Proline or Maxline is used on multi-circuit installations.
Will the self-regulating heating cable burn out if it overlaps itself?
No. Where the cable crosses over itself that point warms, resistance rises and the output falls back by itself. That is why wrapping the cable a few turns around valves and flanges is permitted — something never done with constant-wattage cable.
Which wattage should I choose?
10–20 W/m on plastic pipe and 20–30 W/m on metal pipe. By diameter: 10–20 W/m up to Ø50 mm, 20–30 W/m for Ø50–100 mm, and 30 W/m or two runs above Ø100 mm. Do not exceed the 20 W/m limit on plastic pipe. All three ratings cost the same.
Can self-regulating heating cable be cut on site?
Yes, it is cut to the length required and connected via its integrated cold lead. The cut point is sealed with a splice and termination kit; a cut end is never left open.
